Adjustable Tilt Aluminum AL6005-T5 Solar Mounting Bracket

Our adjustable tilt mounting system allows for angle adjustments from 10° to 60°, optimizing solar panel efficiency throughout different seasons.

1. Structural & Material Profile

• Main Material: High-strength Aluminum Alloy AL6005-T5

• Fasteners Material: Stainless Steel SUS304 (A2-70)

• Surface Finish: Anodized Alumium, Coating Thickness \ge 10\,\mu\text{m} (Optional Upgrade to \ge 12\,\mu\text{m} or 15\,\mu\text{m} for premium marine/coastal anti-corrosion compliance)

• Adjustable Angle Range: 10^\circ - 15^\circ / 15^\circ - 30^\circ / 30^\circ - 60^\circ(Highly customisable to optimize real-time solar irradiance based on targeted project latitudes)

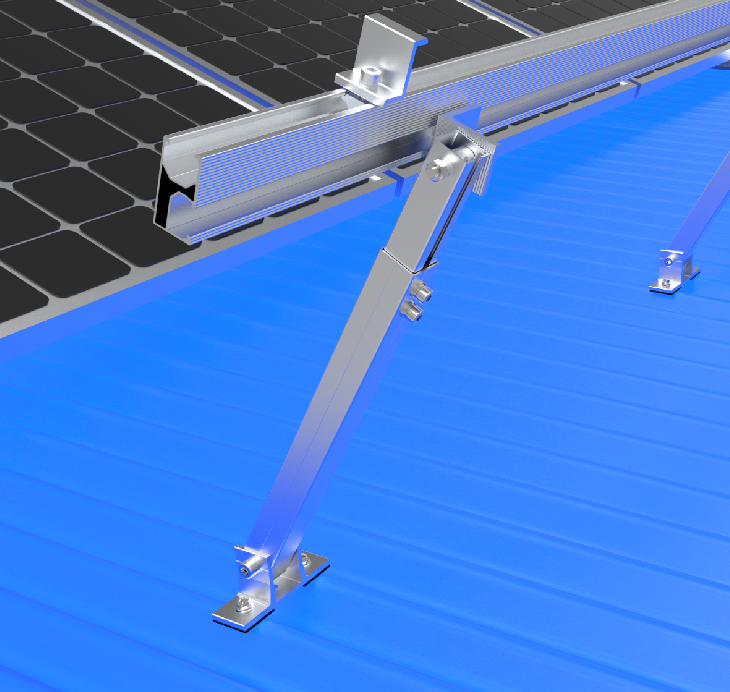

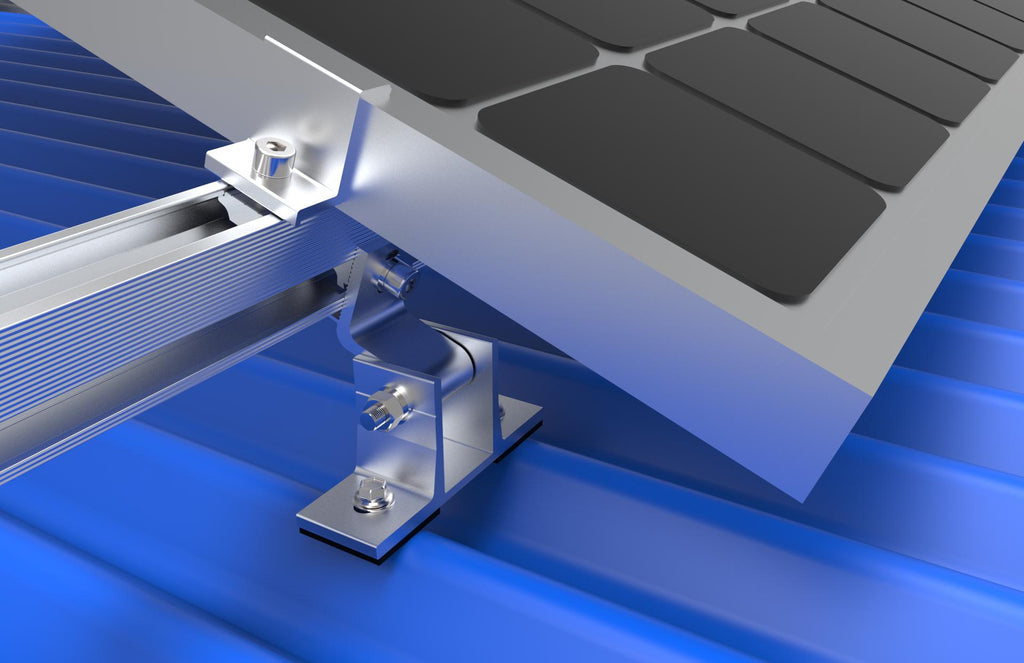

• Structure Type: Adjustable Front Leg & Telescopic Adjustable Rear Leg Architecture

2. Load Capabilities & Compliance

• Max. Wind Load: 45 - 60\,\text{m/s}$ (Fully compliant with AS/NZS 1170.2, Eurocode 3, and IBC structural design codes)

• Max. Snow Load: 1.4 - 2.0\,\text{kN/m}^2

• Anti-Corrosion Resistance: Certified for over 1,000 hours of rigorous continuous Salt Spray Testing, validating structural integrity in extreme coastal and high-salinity tracking zones.

• Standards & Certifications: ISO9001, CE, AS/NZS 1170.2, TUV certified.

3. Application & Installation Specs

• PV Module Compatibility: Universal framework matching all industry-standard monocrystalline modules and high-power 182mm/210mm heavy bifacial glass-glass panels (Frame heights: $30/35/40\,\text{mm}$).

• Module Orientation: Landscape or Portrait configurations.

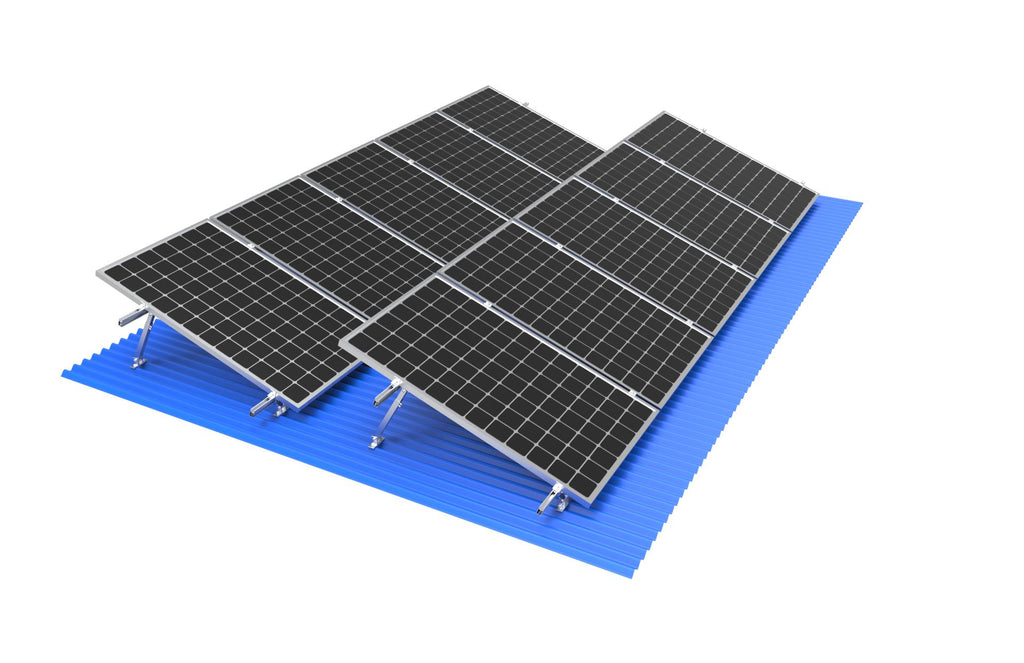

• Installation Sites: Flat Concrete Roofs, Trapezoidal/Corrugated Tin Roofs, Open Ground Spaces.

• Foundation Options: Concrete ballast block (Non-penetrating layout), expansion anchor bolts, or specialized roof sheet interfaces/clamps.

• Warranty & Lifespan: 10-Year Structural Warranty with a 25-Year engineered service lifecycle.
