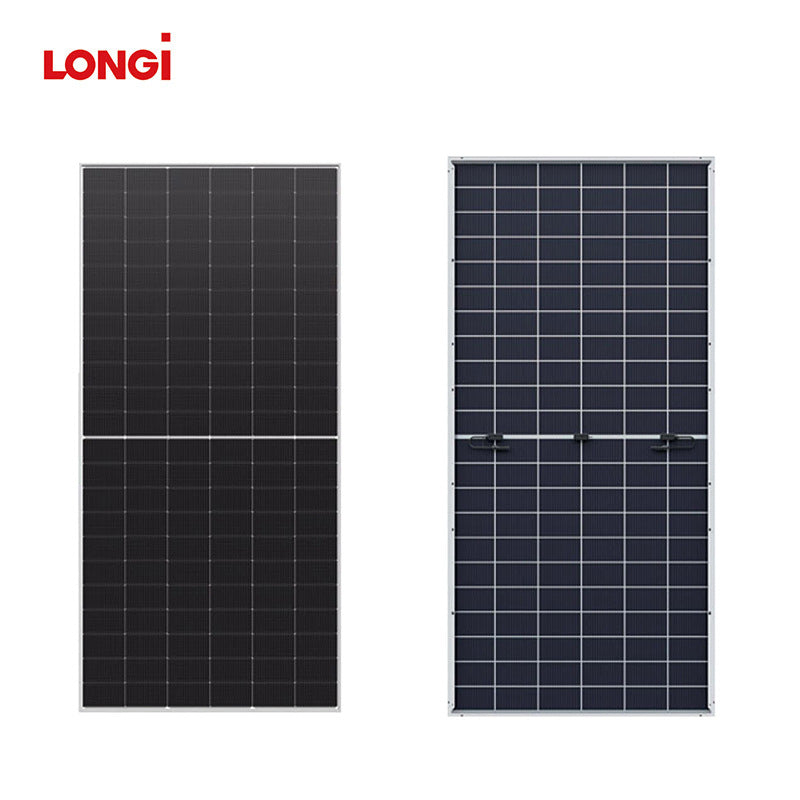

LONGi Hi-MO 7 LR7-72HGD-620M

Hi-MO 7 is LONGi's latest generation of high-efficiency modules designed for the utility market. Hi-MO 7 boasts excellent power generation performance and product reliability, making it particularly suitable for applications with high albedo, high temperature, and limited space.

What is HPDC technology?

HPDC stands for High Performance and Hybrid Passivated Dual-Junction Cell, a bifacial dual-junction cell produced by hybrid passivation technology. Different passivation technologies are used on the front and back of this cell, effectively reducing carrier recombination and enhancing power generation capacity. This results in higher Voc and efficiency, lower degradation, and a better power temperature coefficient.

LONGi has earned the EcoVadis Gold Medal, placing it in the top 5% of companies assessed by EcoVadis for sustainability management and value-chain transparency.

Electrical Characteristics (STC)

Standard Test Conditions: Irradiance $1000\text{ W/m}^2$, Cell Temperature 25°C, Air Mass AM1.5

 Bifacial Output Power Gain (Integrated Performance)

Based on a 620W front-side baseline, varying by ground albedo/reflectivity:

 Operating Parameters & System Design

• Maximum System Voltage: 1500V DC (IEC/UL)

• Maximum Series Fuse Rating: 30 A

• Operating Temperature Range: -40°C to +85°C

• Nominal Module Operating Temperature (NMOT): 45±2°C

• Bifaciality Factor: 80±5%

• Fire Safety Class: IEC Class C / UL Type 29

Temperature Coefficients

• Temperature Coefficient of : -0.280% / °C (Delivers optimized power output retention in hot climates)

• Temperature Coefficient of : -0.230% / °C

• Temperature Coefficient of : +0.045% / °C

 Mechanical Specifications

• Cell Orientation: 144 cells (6 × 24), half-cell configuration

• Cell Type: N-type monocrystalline silicon utilizing LONGi's proprietary HPDC technology

• Dimensions: 2382 × 1134 × 30 mm

• Weight: 33.5 kg

• Front/Rear Glass: Dual-glass design, 2.0mm highly transparent semi-tempered glass on both sides

• Frame: Anodized aluminum alloy frame

• Junction Box & Cables: Split junction box, IP68 rated, 4.0 $mm^2$ solar cables, standard lengths: (+) 400mm / (-) 200mm (custom 1400mm horizontal layout lengths available)

• Mechanical Load Capability: Front side Max. Static Load 5400 Pa (snow), Rear side Max. Static Load 2400 Pa (wind)

 Warranty Terms

• Product Warranty: 12 Years (Materials & Workmanship)

• Performance Warranty: 30 Years (Linear Power Output; first-year degradation $\le$ 1.0%, annual degradation $\le$ 0.40% from year 2 to 30)
