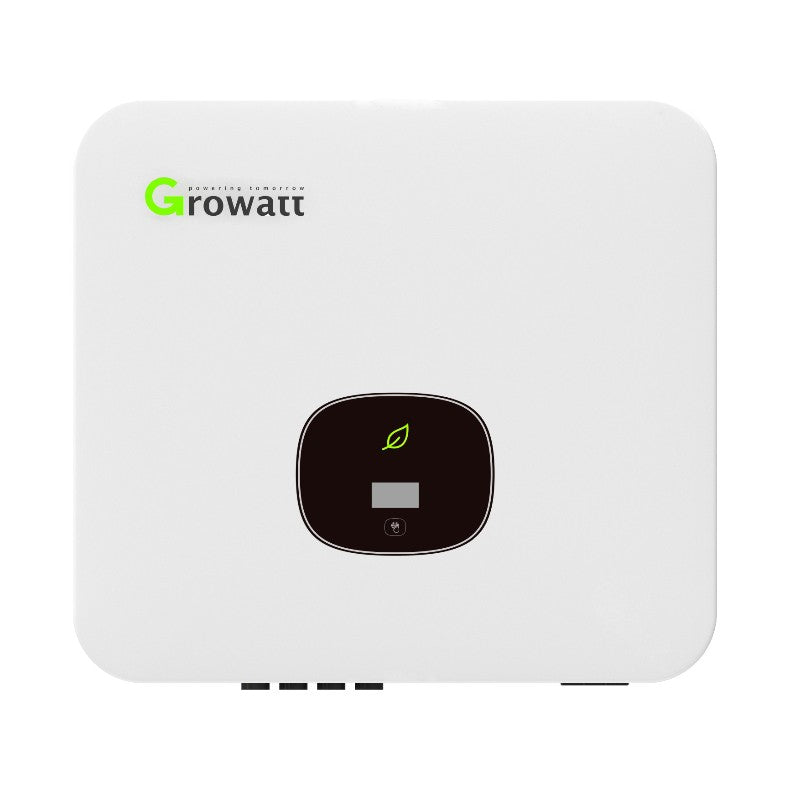

Growatt 8kW MIN Series Single-Phase Grid-Tied Inverter (MIN 8000TL-X2)

Growatt 8kW MIN Series Single-Phase Grid-Tied Inverter (MIN 8000TL-X2)

Growatt 8kW MIN Series Single-Phase Grid-Tied Inverter (MIN 8000TL-X2)
€860,00
€860,00
Skip to product information
Growatt 8kW MIN Series Single-Phase Grid-Tied Inverter (MIN 8000TL-X2)
  • Growatt 8kW MIN Series Single-Phase Grid-Tied Inverter (MIN 8000TL-X2)
Growatt 8kW MIN Series Single-Phase Grid-Tied Inverter (MIN 8000TL-X2)

Growatt 8kW MIN Series Single-Phase Grid-Tied Inverter (MIN 8000TL-X2)

Growatt 8kW MIN Series Single-Phase Grid-Tied Inverter (MIN 8000TL-X2)Growatt 8kW MIN Series Single-Phase Grid-Tied Inverter (MIN 8000TL-X2)

Growatts MIN 8000TL-X2 series are a smart inverter solution for residential rooftop solar systems. It sports a compact design with a touch key and OLED display thats simple and easy to use and boasts a max efficiency of up to 98.1%

Including an Arc Fault Circuit Interrupter to detect a wide range of arcing electrical faults to help reduce the electrical system from being an ignition source of fire. Also including a DC switch which provides a safe way to disconnect the current, allowing you to isolate power for safe maintenance and repair.

PV Input (DC Side)

Supports up to 150% DC overloading. The triple-MPPT architecture provides exceptional string design flexibility for complex roof orientations.

  • Recommended Max. PV Power: 12,000 W (12 kW)

  • Max. DC Voltage: 550 V / 600 V (Varies by regional compliance standards)

  • Start-up Voltage: 80 V

  • Nominal Voltage: 360 V

  • MPPT Voltage Range: 60 V ~ 550 V

  • Number of MPPT Trackers: 3

  • Max. Strings per MPPT: 1

  • Max. Input Current per MPPT: 16 A

  • Max. Short Circuit Current per MPPT (): 24 A (Fully compatible with 182mm/210mm high-current PV modules)

 AC Output (Grid-Tied)

Parameter Value
Rated AC Output Power 8,000 W (8 kW)
Max. AC Apparent Power 8,000 VA
Nominal Grid Voltage 220 V / 230 V (Single-Phase L/N/PE)
Nominal Grid Frequency 50 Hz / 60 Hz (± 5 Hz)
Max. Output Current 38.3 A / 36.4 A
Power Factor >0.99 (0.8 leading to 0.8 lagging adjustable)
Total Harmonic Distortion (THDi) < 3%

 Efficiency & Safety Protection

  • Max. Efficiency: 98.3%

  • European Efficiency: 97.5%

  • MPPT Efficiency: 99.9%

  • Integrated Protections: DC Reverse Polarity Protection, AC Short Circuit Protection, Output Overcurrent Protection, Anti-islanding Protection, Residual Current Monitoring Unit (RCMU), Integrated DC Switch, and Ground Fault Monitoring.

  • Surge Protection: Integrated Type II (or Type III) AC & DC Surge Protective Devices (SPDs).

  • Export Control: Supported (Requires an external Smart Meter or CT configuration).

  • Optional Feature: Integrated AFCI (Arc Fault Circuit Interrupter) to enhance system safety against DC arcs.

General & Mechanical Specifications

  • Dimensions (W × H × D): 425 × 387 × 180 mm

  • Net Weight: 20.0 kg

  • Operating Temperature Range: -25°C to +60°C (Smart derating typically applies above 45°C)

  • Topology: Transformerless

  • Cooling: Natural convection (Fanless, silent operation for long-term reliability)

  • Ingress Protection Rating: IP66 (High-grade dustproof and waterproof rating, fully optimized for harsh outdoor installations)

  • Relative Humidity: 0% ~ 100% (Non-condensing)

  • Max. Operating Altitude: 4,000 m

  • User Interface: OLED Display + Touch Button / Bluetooth + ShinePhone App setup.

  • Connectivity & Communication: Standard USB and RS485; optional external plug-and-play WiFi-X / GPRS-X / LAN-X / RF-X datalogger modules for cloud-based monitoring and remote parameter adjustments.
