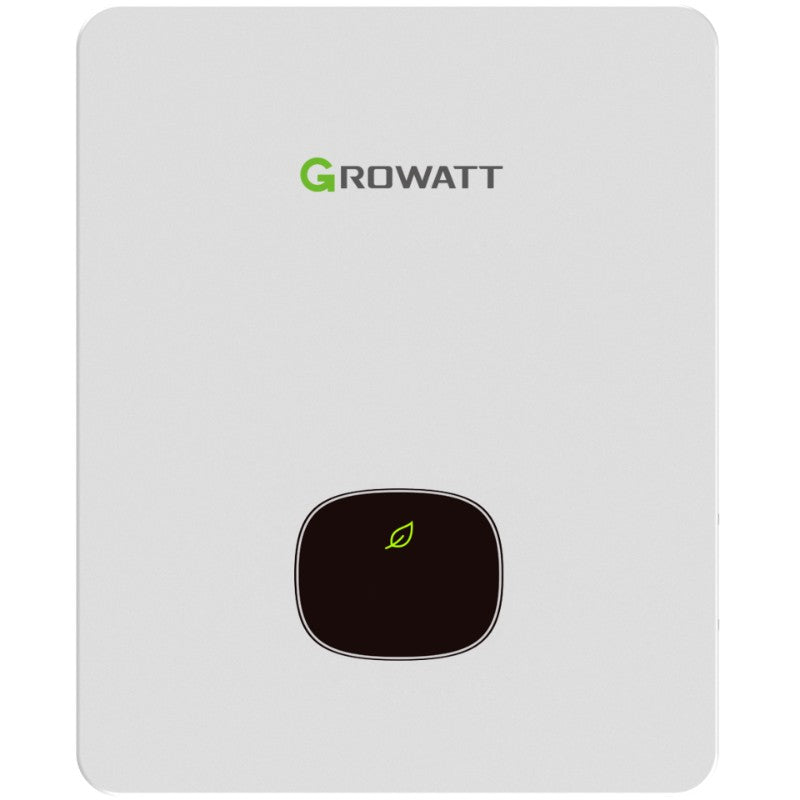

Growatt MID 33 KTL3-X Three Phase Inverter (3x MPPT)
  • Growatt MID 33 KTL3-X Three Phase Inverter (3x MPPT)
Growatt MID 33 KTL3-X Three Phase Inverter (3x MPPT)

Growatt MID 33 KTL3-X Three Phase Inverter (3x MPPT)

Growatt MID 33 KTL3-X Three Phase Inverter (3x MPPT)Growatt MID 33 KTL3-X Three Phase Inverter (3x MPPT)

The new Growatt X range of 3-phase inverters is 40% lighter and more compact then the previous model, which combined with a new, sleeker design makes the KTL3-X range a good choice for 3-phase projects.

The new OLED screen makes settings changes on the unit itself easier then ever.

PV Input Data (DC Side)

The triple-MPPT architecture maximizes generation on roofs with mixed shading or multiple azimuths, while easily handling high-power large-format modules.

  • Recommended Max. PV Power: 49,500 W (49.5 kW) (Allows for a high 150% DC overloading ratio)

  • Max. DC Voltage: 1100 V

  • Start-up Voltage: 250 V

  • Nominal Voltage: 585 V

  • MPPT Voltage Range: 200 V ~ 1000 V

  • Number of MPPT Trackers: 3

  • Number of Strings per MPPT: 2

  • Max. Input Current per MPPT (): 26 A / 26 A / 26 A (13A per string)

  • Max. Short Circuit Current per MPPT (): 32 A / 32 A / 32 A

 AC Output Data (Grid-Tied)

Parameter Value
Nominal AC Output Power 33,000 W (33 kW)
Max. AC Apparent Power 36,300 VA (Provides extra headroom under maximum power export)
Nominal Grid Voltage 220V/380V, 230V/400V (Three-Phase / 3W+N+PE)
Nominal AC Grid Frequency 50 Hz / 60 Hz (Range: 45~55 Hz / 55~65 Hz)
Max. Output Current 55.0 A
Adjustable Power Factor Range 0.8 leading ~ 0.8 lagging
Total Harmonic Distortion (THDi) < 3%

Efficiency & Performance

  • Max. Efficiency: 98.7%

  • European Efficiency: 98.4%

  • MPPT Tracking Efficiency: 99.9%

 Safety & System Protection

  • DC Reverse Polarity Protection: Integrated

  • DC Switch: Integrated

  • AC/DC Surge Protection: Type II (Class 2) SPDs integrated on both DC and AC sides

  • Insulation Resistance Monitoring: Integrated

  • AC Short Circuit Protection: Integrated

  • Ground Fault Monitoring: Integrated

  • Grid Monitoring / Anti-Islanding: Integrated

  • Residual Current Monitoring Unit (RCMU): Integrated

  • String Monitoring: Integrated (Intelligent smart string monitoring for easy troubleshooting)

  • Arc Fault Circuit Interrupter (AFCI): Optional / Integrated (Minimizes localized fire hazards)

  • Anti-Reflux / Export Control: Supported (Requires an external Smart Meter)

General & Mechanical Specifications

  • Dimensions (W × H × D): 580 × 435 × 230 mm (High power density with a compact footprint)

  • Net Weight: 30.0 kg

  • Operating Temperature Range: -25°C to +60°C (Smart derating applies above 45°C)

  • Cooling Concept: Smart forced-air cooling (Temperature-controlled variable-speed fan routing)

  • Topology: Transformerless

  • Ingress Protection Rating: IP66 (Industrial-grade dustproof and waterproof build rating, fully optimized for exposed outdoor deployments)

  • Relative Humidity: 0% ~ 100% (Non-condensing)

  • Max. Operating Altitude: 4,000 m

  • User Interface & Interaction: OLED Display + Touch Button / Bluetooth + ShinePhone App

  • Communication Options: RS485, USB. Optional external plug-and-play WiFi-X / LAN-X / 4G-X datalogger modules for advanced remote telemetry, cloud reporting, and configuration.

  • Note: These products are not compatible with the standard Shinelink or Shinevision monitoring options and require the Shinelink-X module for monitoring — contact us for details.
