AC Miniature Circuit Breaker, 120V/240V 2 Pole 32 Amp DIN Rail Mount C

AC Miniature Circuit Breaker, 120V/240V 2 Pole 32 Amp DIN Rail Mount Circuit Breaker, MCB C32 Solar AC Disconnect Switch,Thermal Magnetic Trip

10A

€8,52

€8,52 €8,52

1/26

AC Miniature Circuit Breaker, 120V/240V 2 Pole 32 Amp DIN Rail Mount Circuit Breaker, MCB C32 Solar AC Disconnect Switch,Thermal Magnetic Trip

CNJIAPEI DC Miniature Circuit Breaker

Observe Polarity: Ensure proper polarity alignment during installation.

Choose the Right Wire Size: Select wiring that matches the rated current for optimal performance.

AC Miniature Circuit Breaker 2P 32A 120V/240V

Material: ABS plastic , Metal , Copper

Rated Operational Voltage:120V / 240V AC

Rated Current:32A

Poles：2

Uimp：4kV

Breaking Capacity：6kA

Standard:IEC60898-1

Package Contents

1× 2 pole 32A 120V/240V AC Circuit Breake
1×35mm din rial
2×screw

High-Quality Solutions for Electrical Safety

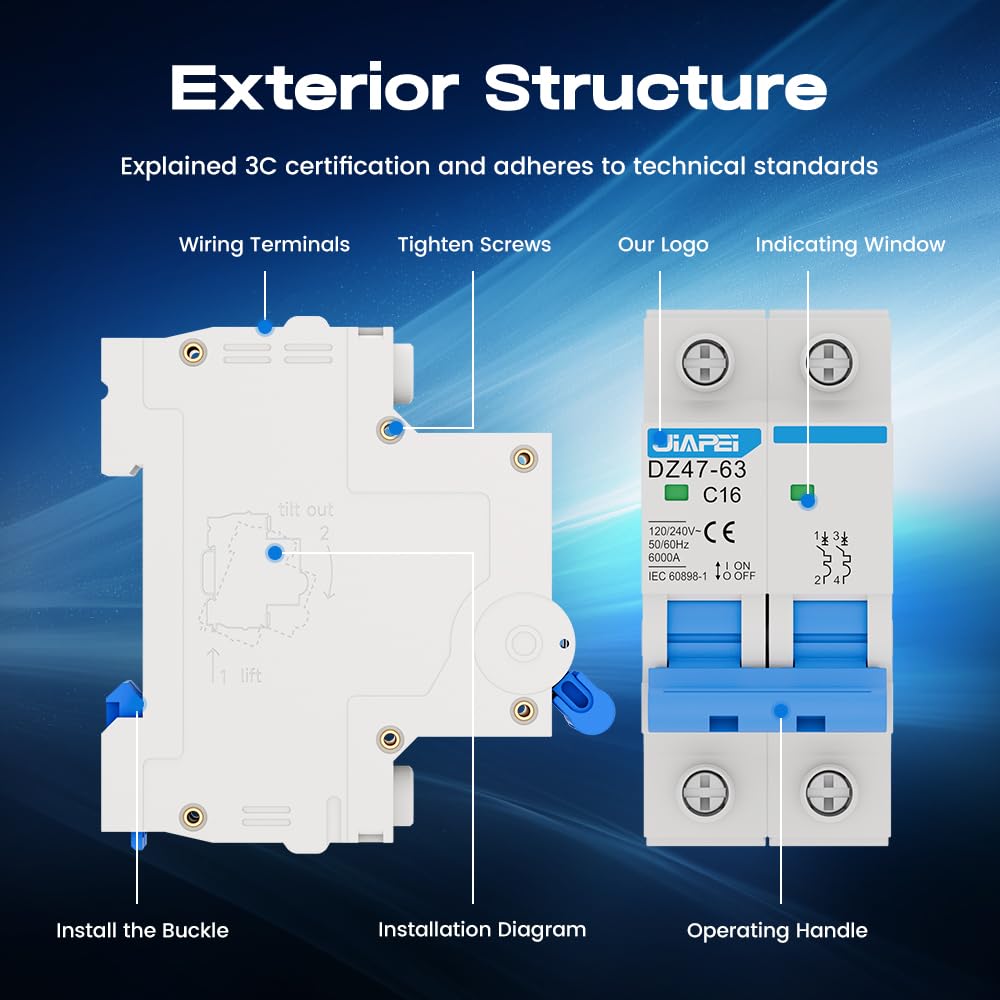

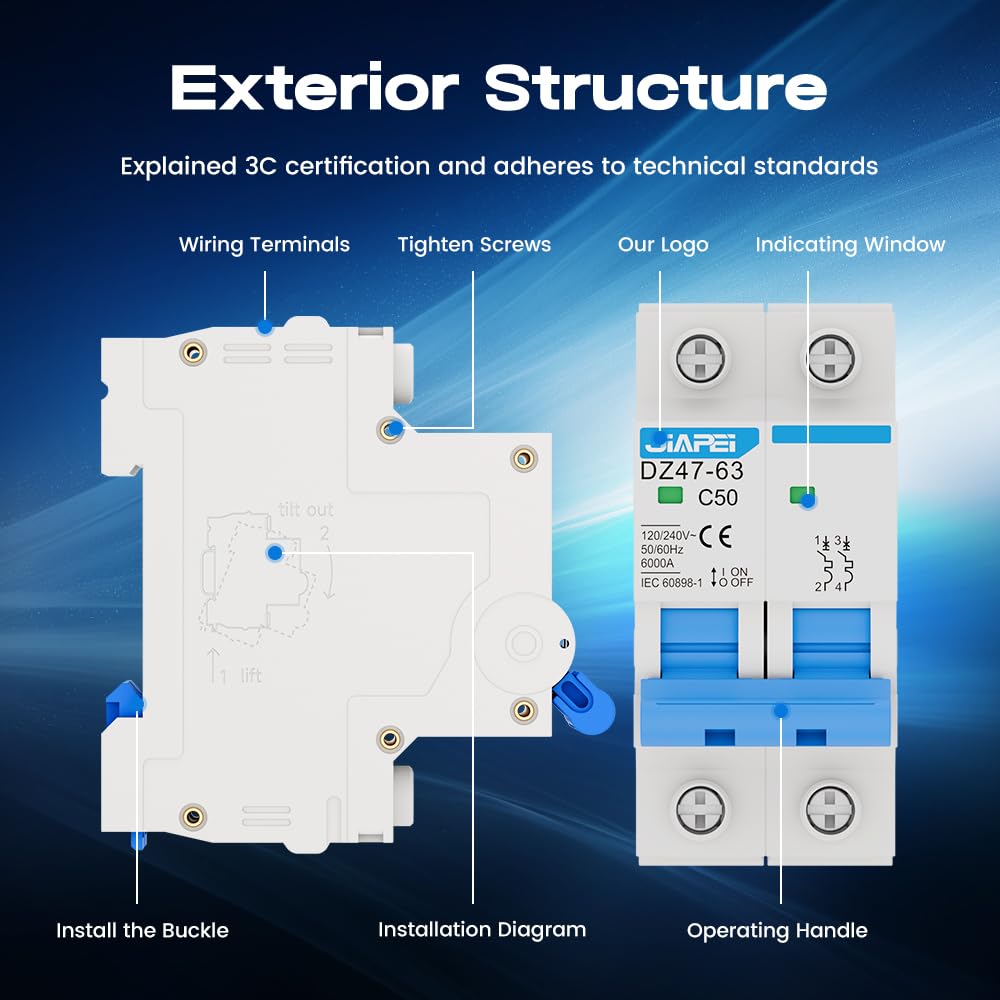

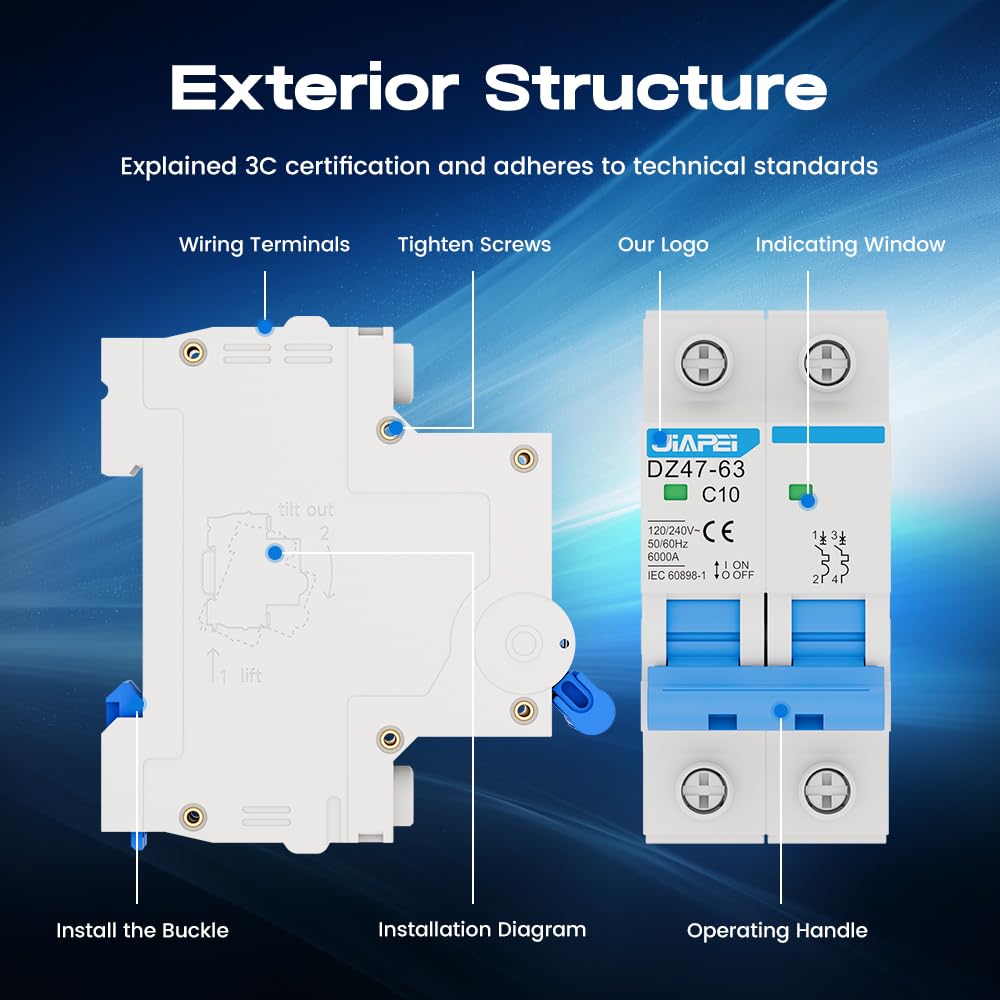

Indicator Window

Stay informed at a glance and avoid misoperation. The green indicator signals a power-off state, while the red indicator shows the circuit breaker is active.

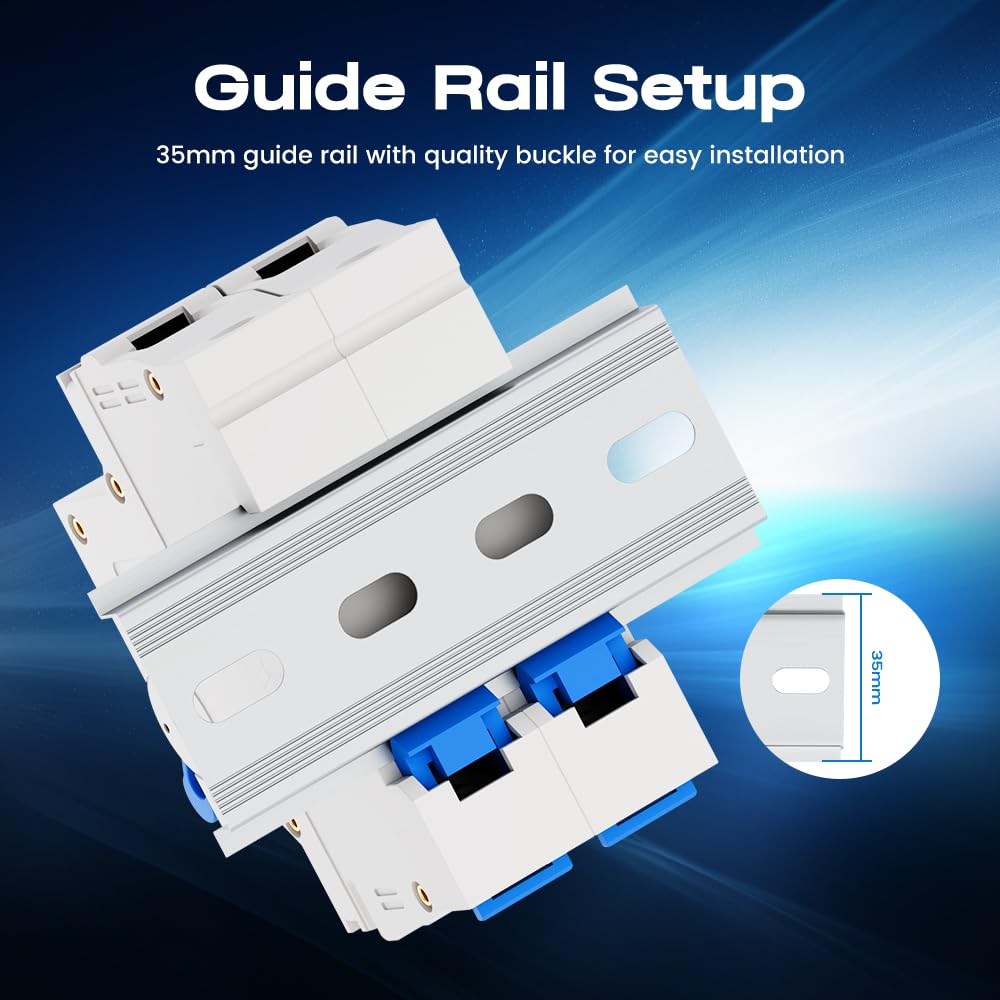

Built-In DIN Rail

Comes with pre-included DIN rails for hassle-free installation—no need for additional purchases.

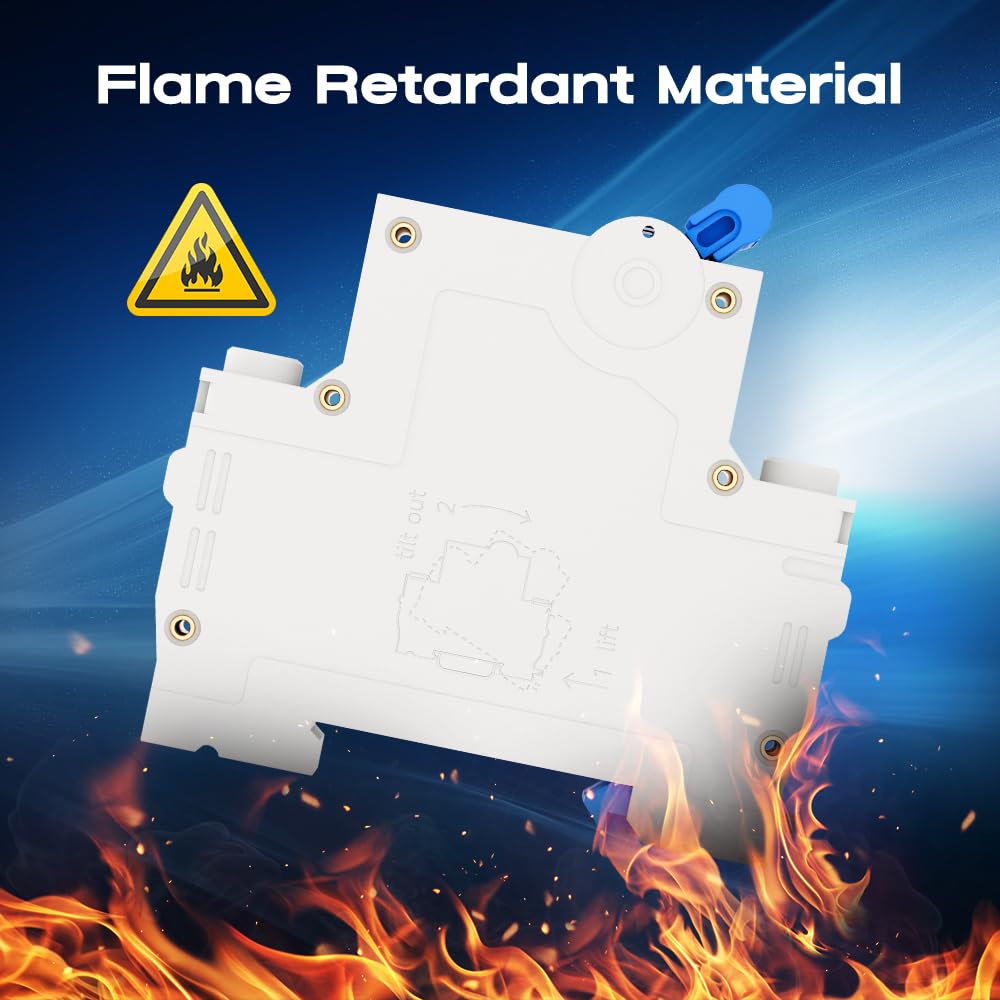

Flame-Retardant Construction

The housing is made from high-temperature, flame-retardant material, offering exceptional fire resistance and ensuring enhanced safety.

Installation

DIN Rail Installation

Ensure the 35mm DIN rail is securely mounted horizontally in a stable location.

Installation Steps

1.Hook the top slot of the circuit breaker onto the DIN rail.

2.Press the bottom of the circuit breaker firmly into place on the rail.

Removal Steps

1.Push the circuit breaker upward to release it from the rail.

2.Tilt the top of the circuit breaker outward to fully detach it from the DIN rail.

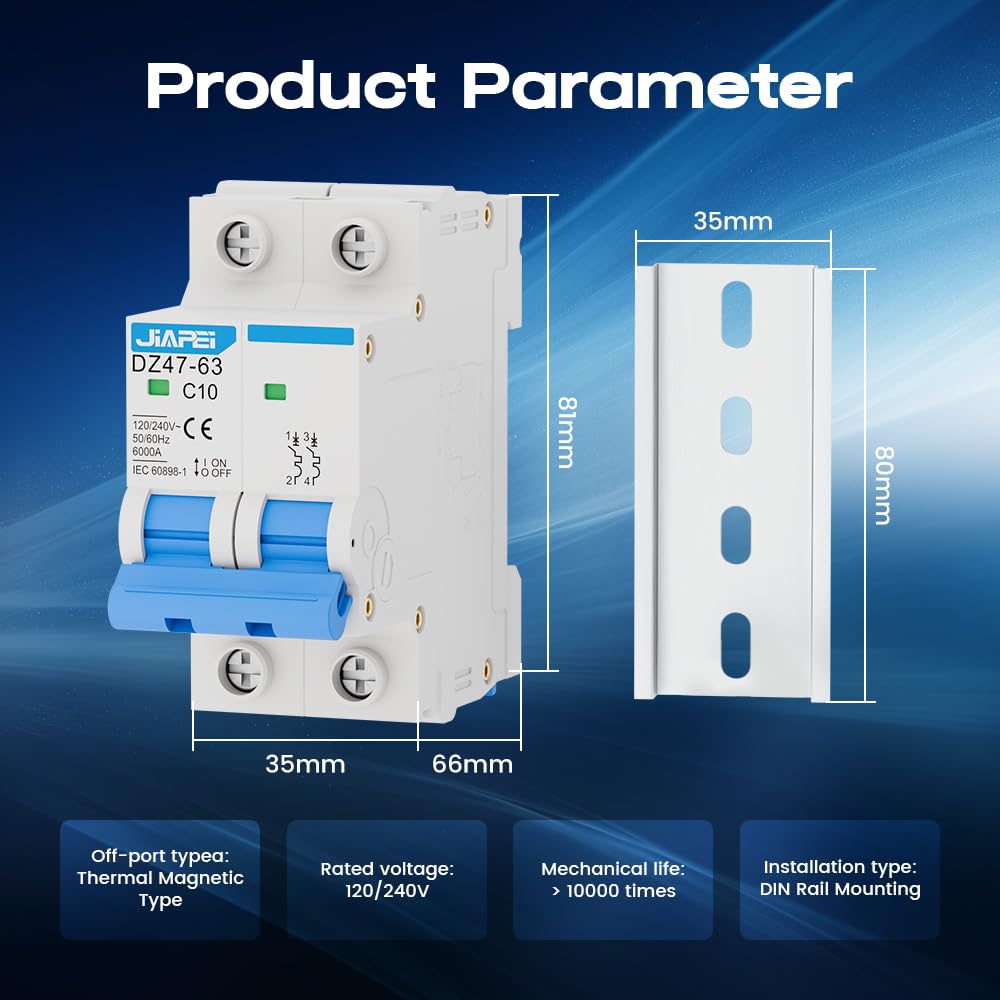

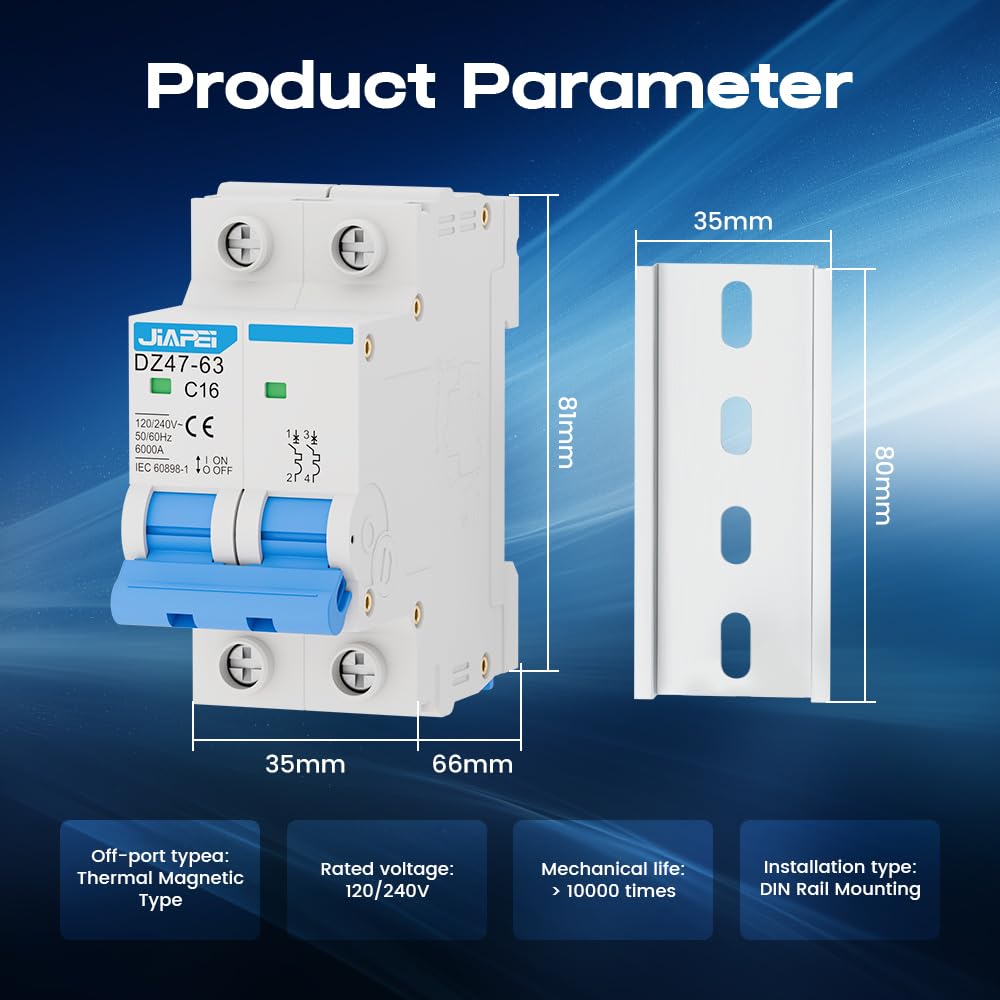

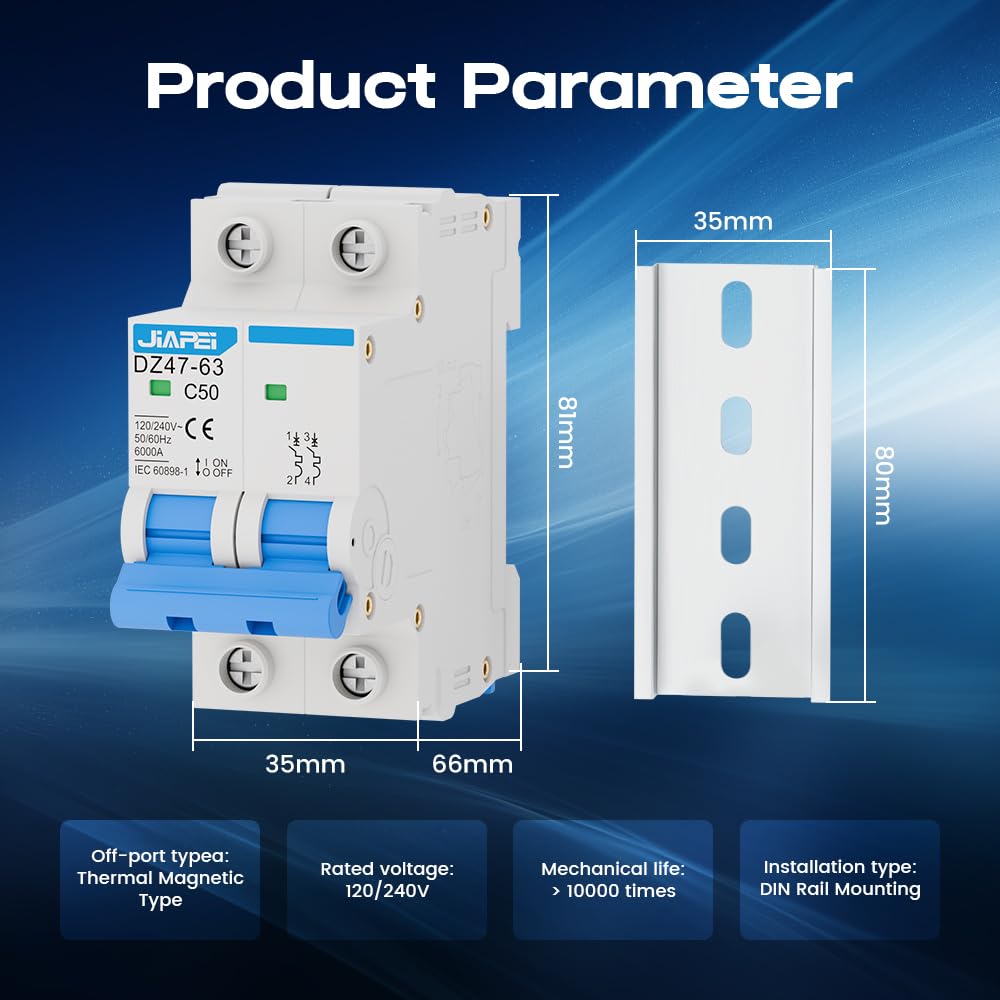

Product Name	AC Miniature Circuit Breaker 120V/240V 32A
Rated Operational Voltage	AC 120 V / 240 V (optional)
Rated Current [In]	6 A /10 A / 16 A / 20 A / 25 A / 32 A / 40 A / 50 A / 63 A (optional)
Poles	2P

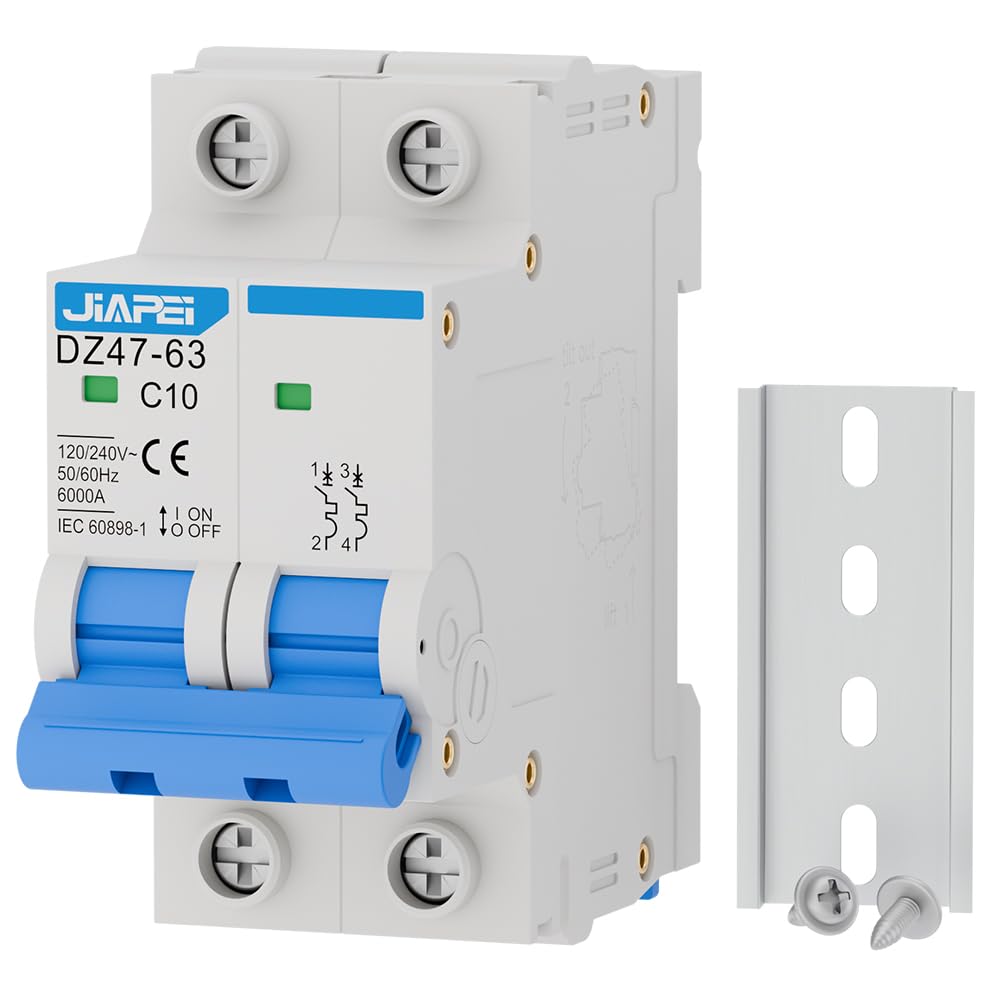

Package Includes	1 x AC miniature circuit breaker, 1 x DIN rail, 2 x screws
Mounting Support	35mm DIN rail
Operating Temperature	-13°F(-25℃) ~ 140°F(60℃)
Mechanical Durability	10000 Cycles
Electrical Durability	4000 cycles
Tightening Torque	2.5 N.m
Standard	IEC60898-1
Uimp	4kV
Breaking Capacity	6kA Ics=Icu

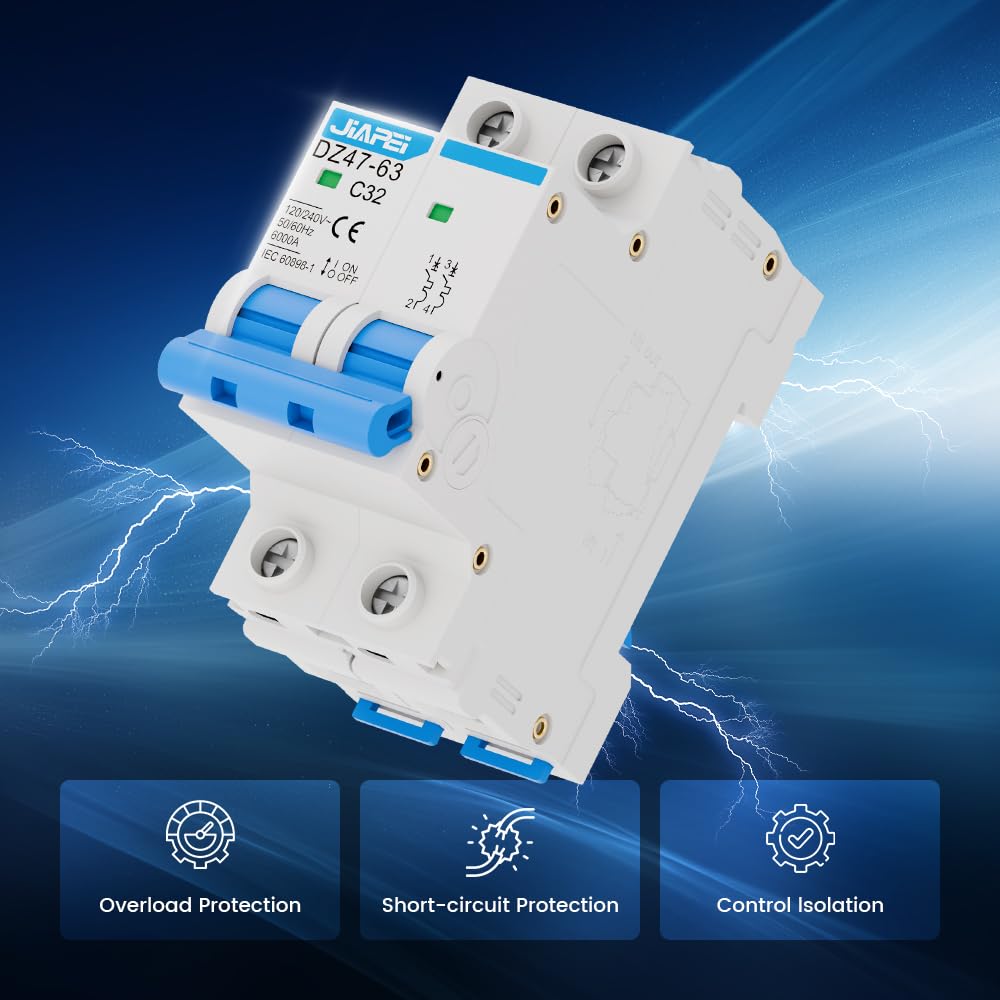

Function: Designed to protect 110V, 120V, 220V, and 230V AC circuits from overload and short circuit damage; also suitable for control and isolation purposes.
Curve C: Magnetic trip range of 5-10 times the rated current.
Quality: Features silver alloy contacts, a flame-retardant housing, and color-coded indicators for easy status identification.
Applications: Suitable for solar AC systems, RVs, household circuits, or other 50/60Hz AC systems.
Installation: Screw terminal connections with 35mm DIN rail mounting.
